[Active IR Stereo Camera][Intel Realsense][ROS2 Dashing] Start the realsense camera node

Usage Instructions

---

Start the camera node

To start the camera node in ROS:

$ ros2 launch realsense2_camera rs_launch.py

or, with parameters specified in rs_launch.py, for example - pointcloud enabled:

$ ros2 launch realsense2_camera rs_launch.py enable_pointcloud:=true device_type:=d435

or, without using the supplement launch files:

$ ros2 run realsense2_camera realsense2_camera_node --ros-args -p filters:=colorizer

or, with a demo config file:

$ ros2 launch realsense2_camera rs_launch.py config_file:="'$COLCON_PREFIX_PATH/realsense2_camera/share/realsense2_camera/config/d435i.yaml'"

This will stream all camera sensors and publish on the appropriate ROS topics.



Published Topics

The published topics differ according to the device and parameters.
After running the above command with D435i attached, the following list of topics will be available (This is a partial list. For full one type ros2 topic list):

• /camera/accel/imu_info
• /camera/color/camera_info
• /camera/color/image_raw
• /camera/depth/camera_info
• /camera/depth/color/points
• /camera/depth/image_rect_raw
• /camera/extrinsics/depth_to_color
• /camera/extrinsics/depth_to_infra1
• /camera/extrinsics/depth_to_infra2
• /camera/gyro/imu_info
• /camera/imu
• /camera/infra1/camera_info
• /camera/infra1/image_rect_raw
• /camera/infra2/camera_info
• /camera/infra2/image_rect_raw
• /camera/parameter_events
• /camera/rosout
• /parameter_events
• /rosout
• /tf_static



Using an L515 device the list differs a little by adding a 4-bit confidence grade (published as a mono8 image): /camera/confidence/camera_info /camera/confidence/image_rect_raw It also replaces the 2 infrared topic sets with the single available one: /camera/infra/camera_info /camera/infra/image_raw



The "/camera" prefix is the namesapce specified in the given launch file.
When using D435 or D415, the gyro and accel topics wont be available. Likewise, other topics will be available when using T265 (see below).





Available Parameters:

For the entire list of parameters type ros2 param list.

• serial_no: will attach to the device with the given serial number (serial_no) number. Default, attach to the first (in an inner list) RealSense device.
  • Note: serial number can also be defined with "_" prefix. For instance, serial number 831612073525 can be set in command line as serial_no:=_831612073525. That is a workaround until a better method will be found to ROS2's auto conversion of strings containing only digits into integers.
• usb_port_id: will attach to the device with the given USB port (usb_port_id). i.e 4-1, 4-2 etc. Default, ignore USB port when choosing a device.
• device_type: will attach to a device whose name includes the given device_type regular expression pattern. Default, ignore device type. For example, device_type:=d435 will match d435 and d435i. device_type=d435(?!i) will match d435 but not d435i.
• rosbag_filename: Will publish topics from rosbag file.
• initial_reset: On occasions the device was not closed properly and due to firmware issues needs to reset. If set to true, the device will reset prior to usage.
• align_depth: If set to true, will publish additional topics for the "aligned depth to color" image.: /camera/aligned_depth_to_color/image_raw, /camera/aligned_depth_to_color/camera_info.
  The pointcloud, if enabled, will be built based on the aligned_depth_to_color image.
• filters: any of the following options, separated by commas:
• colorizer: will color the depth image. On the depth topic an RGB image will be published, instead of the 16bit depth values .
• pointcloud: will add a pointcloud topic /camera/depth/color/points.
  • The texture of the pointcloud can be modified in rqt_reconfigure (see below) or using the parameters: pointcloud_texture_stream and pointcloud_texture_index. Run rqt_reconfigure to see available values for these parameters.
  • The depth FOV and the texture FOV are not similar. By default, pointcloud is limited to the section of depth containing the texture. You can have a full depth to pointcloud, coloring the regions beyond the texture with zeros, by setting allow_no_texture_points to true.
  • pointcloud is of an unordered format by default. This can be changed by setting ordered_pc to true.
• hdr_merge: Allows depth image to be created by merging the information from 2 consecutive frames, taken with different exposure and gain values. The way to set exposure and gain values for each sequence in runtime is by first selecting the sequence id, using the stereo_module.sequence_id parameter and then modifying the stereo_module.gain, and stereo_module.exposure.
  To view the effect on the infrared image for each sequence id use the sequence_id_filter.sequence_id parameter.
  To initialize these parameters in start time use the following parameters:
  stereo_module.exposure.1, stereo_module.gain.1, stereo_module.exposure.2, stereo_module.gain.2
  * For in-depth review of the subject please read the accompanying white paper.
• The following filters have detailed descriptions in : https://github.com/IntelRealSense/librealsense/blob/master/doc/post-processing-filters.md
  • disparity - convert depth to disparity before applying other filters and back.
  • spatial - filter the depth image spatially.
  • temporal - filter the depth image temporally.
  • hole_filling - apply hole-filling filter.
  • decimation - reduces depth scene complexity.
• enable_sync: gathers closest frames of different sensors, infra red, color and depth, to be sent with the same timetag. This happens automatically when such filters as pointcloud are enabled.
• <stream_type>_width, <stream_type>_height, <stream_type>_fps: <stream_type> can be any of infra, color, fisheye, depth, gyro, accel, pose, confidence. Sets the required format of the device. If the specified combination of parameters is not available by the device, the stream will be replaced with the default for that stream. Setting a value to 0, will choose the first format in the inner list. (i.e. consistent between runs but not defined).
  *Note: for gyro accel and pose, only _fps option is meaningful.
• <stream_type>_qos, <stream_type>_info_qos, and <stream_type>_extrinsics_qos: <stream_type> can be any of infra, color, fisheye, depth, gyro, accel, pose, confidence, pointcloud, imu. Sets the QoS by which the topic is published. Available values are the following strings: SYSTEM_DEFAULT, PARAMETER_EVENTS, SERVICES_DEFAULT, PARAMETERS, DEFAULT, SENSOR_DATA, HID_DEFAULT (= DEFAULT with depth of 100), EXTRINSICS_DEFAULT (= DEFAULT with depth of 1 and transient local durabilty).
  Notice: <stream_type>_info_qos refers to both camera_info topics and metadata topics.
• enable_<stream_name>: Choose whether to enable a specified stream or not. Default is true for images and false for orientation streams. <stream_name> can be any of infra1, infra2, color, depth, fisheye, fisheye1, fisheye2, gyro, accel, pose, confidence.
• <stream_name>_frame_id, <stream_name>_optical_frame_id, aligned_depth_to_<stream_name>_frame_id: Specify the different frame_id for the different frames. Especially important when using multiple cameras.
• base_frame_id: defines the frame_id all static transformations refers to.
• odom_frame_id: defines the origin coordinate system in ROS convention (X-Forward, Y-Left, Z-Up). pose topic defines the pose relative to that system.
• unite_imu_method: The D435i and T265 cameras have built in IMU components which produce 2 unrelated streams: gyro - which shows angular velocity and accel which shows linear acceleration. Each with it's own frequency. By default, 2 corresponding topics are available, each with only the relevant fields of the message sensor_msgs::Imu are filled out. Setting unite_imu_method creates a new topic, imu, that replaces the default gyro and accel topics. The imu topic is published at the rate of the gyro. All the fields of the Imu message under the imu topic are filled out.
  • linear_interpolation: Every gyro message is attached by the an accel message interpolated to the gyro's timestamp.
  • copy: Every gyro message is attached by the last accel message.
• clip_distance: remove from the depth image all values above a given value (meters). Disable by giving negative value (default)
• linear_accel_cov, angular_velocity_cov: sets the variance given to the Imu readings. For the T265, these values are being modified by the inner confidence value.
• hold_back_imu_for_frames: Images processing takes time. Therefor there is a time gap between the moment the image arrives at the wrapper and the moment the image is published to the ROS environment. During this time, Imu messages keep on arriving and a situation is created where an image with earlier timestamp is published after Imu message with later timestamp. If that is a problem, setting hold_back_imu_for_frames to true will hold the Imu messages back while processing the images and then publish them all in a burst, thus keeping the order of publication as the order of arrival. Note that in either case, the timestamp in each message's header reflects the time of it's origin.
• topic_odom_in: For T265, add wheel odometry information through this topic. The code refers only to the twist.linear field in the message.
• calib_odom_file: For the T265 to include odometry input, it must be given a configuration file. Explanations can be found here. The calibration is done in ROS coordinates system.
• publish_tf: boolean, publish or not TF at all. Defaults to True.
• tf_publish_rate: double, positive values mean dynamic transform publication with specified rate, all other values mean static transform publication. Defaults to 0
• publish_odom_tf: If True (default) publish TF from odom_frame to pose_frame.
• infra_rgb: When set to True (default: False), it configures the infrared camera to stream in RGB (color) mode, thus enabling the use of a RGB image in the same frame as the depth image, potentially avoiding frame transformation related errors. When this feature is required, you are additionally required to also enable enable_infra:=true for the infrared stream to be enabled.
  • NOTE The configuration required for enable_infra is independent of enable_depth
  • NOTE To enable the Infrared stream, you should enable enable_infra:=true NOT enable_infra1:=true nor enable_infra2:=true
  • NOTE This feature is only supported by Realsense sensors with RGB streams available from the infra cameras, which can be checked by observing the output of rs-enumerate-devices





Available services:

• enable : Start/Stop all streaming sensors. Usage example: ros2 service call /camera/enable std_srvs/srv/SetBool "{data: False}"
• device_info : retrieve information about the device - serial_number, firmware_version etc. Type ros2 interface show realsense2_camera_msgs/srv/DeviceInfo for the full list. Call example: ros2 service call /camera/device_info realsense2_camera_msgs/srv/DeviceInfo





Point Cloud

Here is an example of how to start the camera node and make it publish the point cloud using the pointcloud option.

$ ros2 launch realsense2_camera demo_pointcloud_launch.py

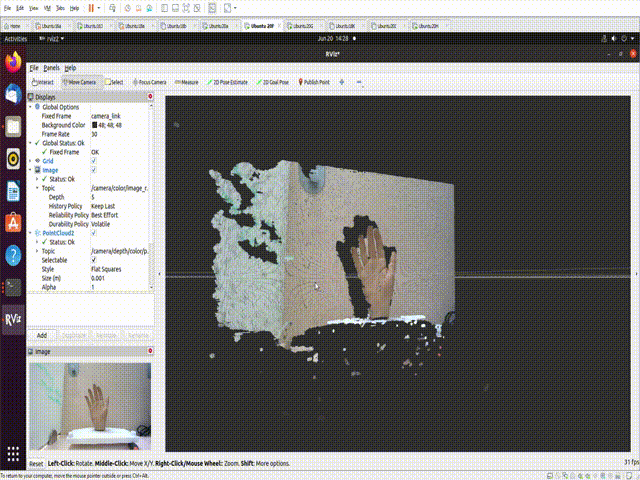

An rviz2 node opens to watch the pointcloud:





Aligned Depth Frames

Here is an example of how to start the camera node and make it publish the aligned depth stream to color stream.

$ ros2 launch realsense2_camera rs_launch.py align_depth:=true

Looking at the published topics:

$ ros2 topic list

• /camera/aligned_depth_to_color/camera_info
• /camera/aligned_depth_to_color/image_raw
• /camera/color/camera_info
• /camera/color/image_raw
• /camera/depth/camera_info
• /camera/depth/image_rect_raw
• /camera/extrinsics/depth_to_color
• /parameter_events/rosout
• /tf
• /tf_static





View and Modify Camera Controls Params in runtime:

The following command allow to change camera control values.

$ ros2 run rqt_reconfigure rqt_reconfigure





Work with multiple cameras

Every realsense2_camera node is an independent process. One can 2 nodes using a dedicated launch file:

$ ros2 launch realsense2_camera rs_multi_camera_launch.py camera_name1:=my_D435 device_type1:=d435 camera_name2:=my_d415 device_type2:=d415

or by specifying serial numbers and using default camera1 and camera2 node names:

$ ros2 launch realsense2_camera rs_multi_camera_launch.py serial_no1:=_036522070660 serial_no2:=_725112060349

or launch each from a separate terminal:

$ ros2 launch realsense2_camera rs_launch.py camera_name:=my_d415 serial_no:=_036522070660

and

$ ros2 launch realsense2_camera rs_launch.py camera_name:=my_d435 serial_no:=_725112060349

Notice the importance of defining a different camera_name for each node as this is the header of the topics.





Using T265

Start the camera node

To start the camera node in ROS:

$ ros2 launch realsense2_camera rs_t265_launch.py

or, if you also have a d4xx connected, you can try out the launch file:

$ ros2 launch realsense2_camera rs_d400_and_t265_launch.py enable_fisheye12:=true enable_fisheye22:=true

• note: the parameters are called enable_fisheye12 and enable_fisheye22. The node knows them as enable_fisheye1 and enable_fisheye2 but launch file runs 2 nodes and these parameters refer to the second one.

To visualize the pose output and frames in RViz, start:

$ ros2 launch realsense2_camera demo_t265_launch.py





realsense2_description package:

For viewing included models, a separate package, realsense2_description, is included. For example:

$ ros2 launch realsense2_description view_model.launch.py model:=test_d415_camera.urdf.xacro

or, to list available models:

$ ros2 launch realsense2_description view_model.launch.py





Still on the pipeline:

• Support ROS2 life cycle.
• Enable and disable sensors and filters.

Unit tests:

Unit-tests are based on bag files saved on S3 server. These can be downloaded using the following commands:

$ cd ros2_ws
$ wget "https://librealsense.intel.com/rs-tests/TestData/outdoors_1color.bag" -P "records/"
$ wget "https://librealsense.intel.com/rs-tests/D435i_Depth_and_IMU_Stands_still.bag" -P "records/"

Then, unit-tests can be run using the following command (use either python or python3):

$ python3 src/realsense-ros/realsense2_camera/scripts/rs2_test.py --all
